DC High-Speed Power Line Communication (PLC) Module

Product Introduction

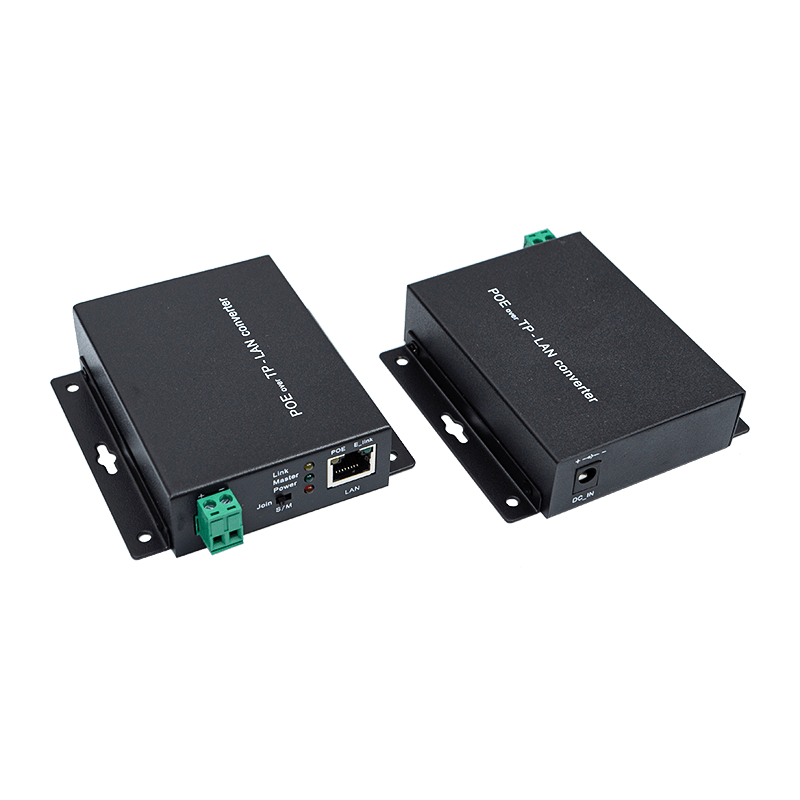

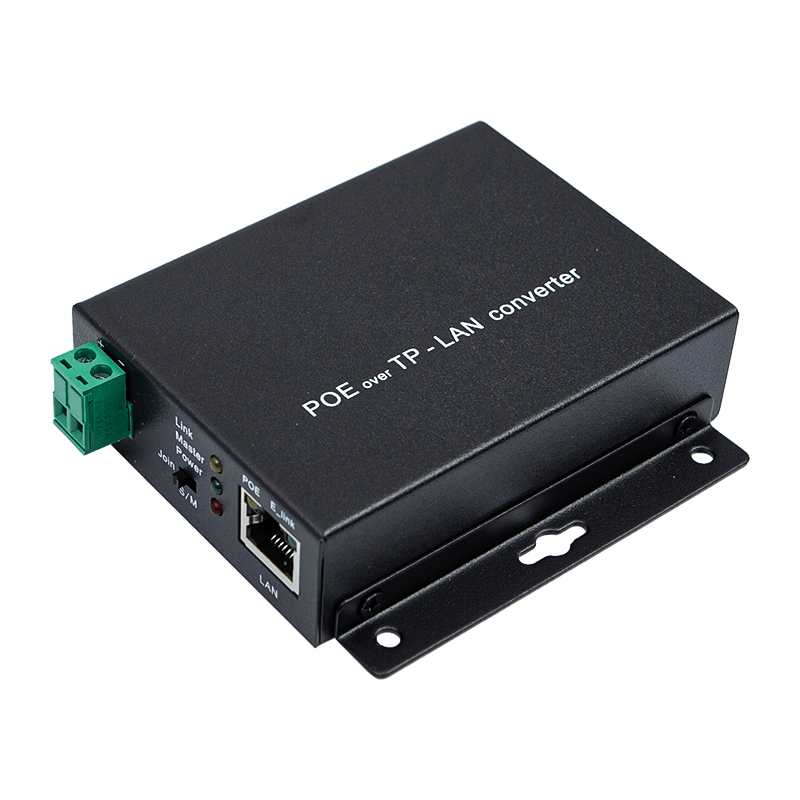

HD-PLC KS700Q is a broadband power carrier communication device that can draw power from a DC cable，support network port data in any two-core wire，such as slip touch cord, twisted pairs, coaxial cables, DC parallel lines, etc. for high-rate long-distance transmission，maximum physical layer rate up to1000Mbps，point-to-point transmission distance up to 1000 meters，the relay version supports up to 10 levels of relay.

PLC KS700Q divided into host and slave via the device's master-slave dip switches，M-side is the host, S-side is the slave.Supports data transfer from one host to one slave or one host to multiple slaves.Self-contained routing algorithm，automatic networking，supports bus, star, tree, and hybrid network topologies structure.Data encryption, complete transparent transmission，plug and play.

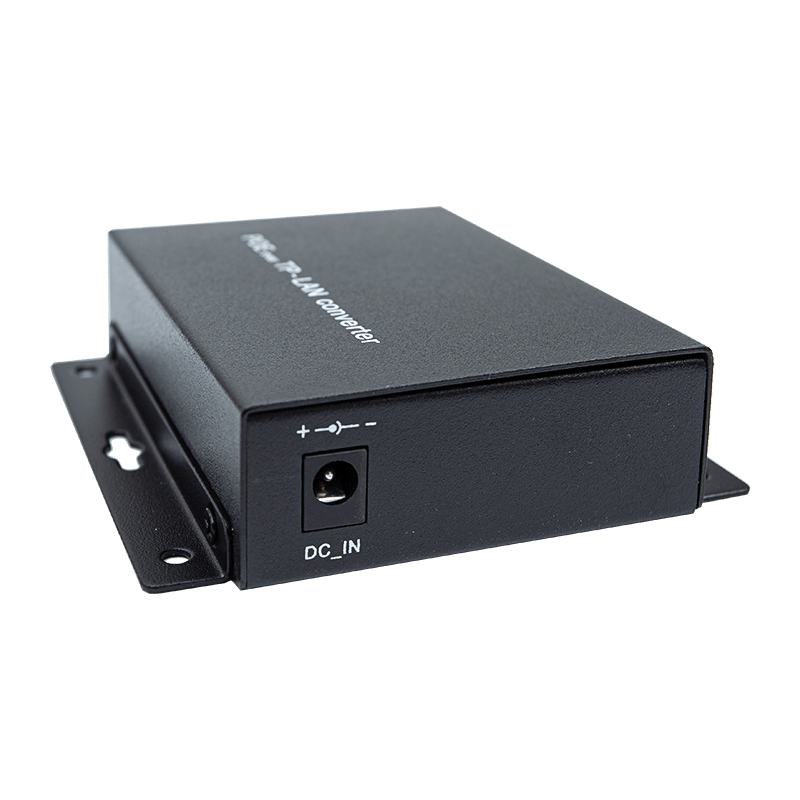

PLC KS700Q support not only POC function，transmission of both network signals and DC power over power lines，and it supports POE function，supports POE cameras；Also has the ability to draw power on a DC line，PLC channel port can draw power from the DC power line without the need for a separate power supply.

PLC KS700Q conforms to industrial grade standards，high anti-interference，high stability and reliability，with POC, POE, on-line power pickup and other functions.Small volume，hanging ear installation method,it is suitable for carrier communication on power line or slip touch cord below DC 56 V.Products have been widely used in all walks of life，including slide rail robot, inspection robot, pipeline robot, underwater robot, high-definition video surveillance and so on.
