High-Voltage Broadband Powerline Transceiver

Product Introduction

High Definition- Power Line Communication KS700M4P is a powerful and high-performance broadband power carrier communication device，support network port、RS485(modbus agreement) serial port and other digital information on any two-core wire，such as twisted pair, coaxial cable, DC wire, AC wire, parallel line, elevator cable, etc,for high speed long distance transmission

PLC KS700M4P is self-contained routing algorithm，automatic networking，data transparent transmission，plug and play，the maximum communication speed is 1000Mbps，the maximum point-to-point transmission distance can reach 1000 meters，the relay version supports up to 10 levels of relay，the maximum transmission is 3-5 kilometer.

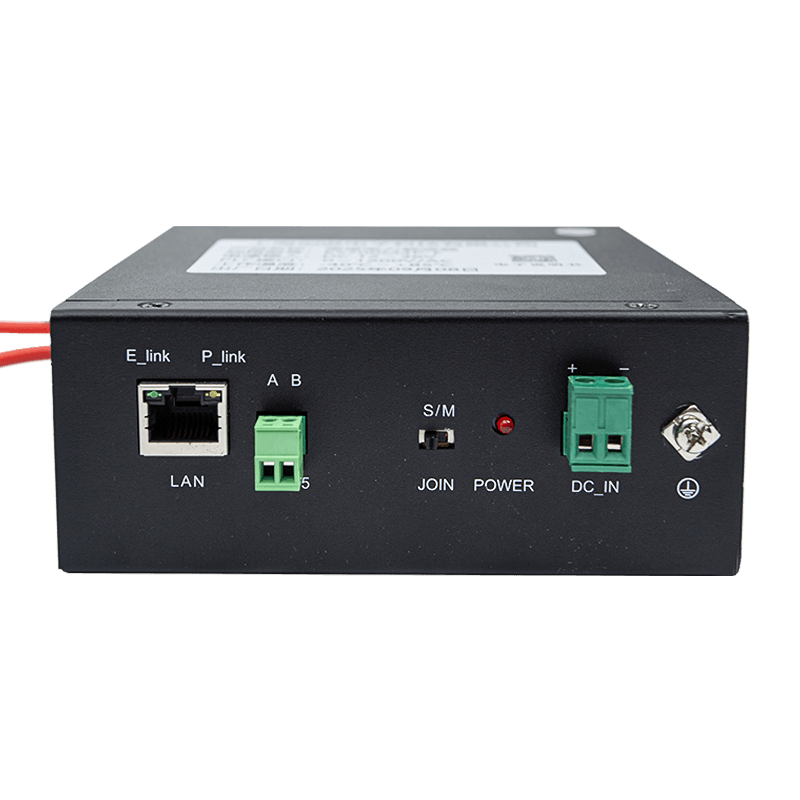

PLC KS700M4P multiple versions are available，hardware version is available in standard version、high bandwidth version、 long-distance edition、  broadcast version，software version is include high performance edition、 relay version 、slip touch cord dedicated version etc. KS700M4P one-touch setup of host and extension via master-slave dip switches，M-side is the hosts, S-side is the slave.A host can take one slave or multiple slaves.Flexible networking，supports bus, star, tree, and hybrid network topologies structure.

PLC KS700M4P integrated coupled circuit，surge protection，meet 1140V safety certification specification，suitable for power line carrier communication up to AC1200V.The products are mainly used in power carrier communication scenarios, such as mine communication system, oilfield collection platform, substation, photovoltaic new energy and so on.
