Single-Phase Dual-Port Broadband Powerline Transceiver

Product Introduction

Broadband carrier KSF710LD is an industrial-grade bandwidth power line carrier communication device based on IEEE P1901, adopting OFDM modulation and demodulation technology, and conforming to the European Union's EN-50561 standard specification. It uses the existing power lines or slip contact cord as the information transmission medium for high-speed and long-distance transmission of data, and has the features of high communication rate, bi-directional transparent transmission, good stability of transmission, and strong scalability.

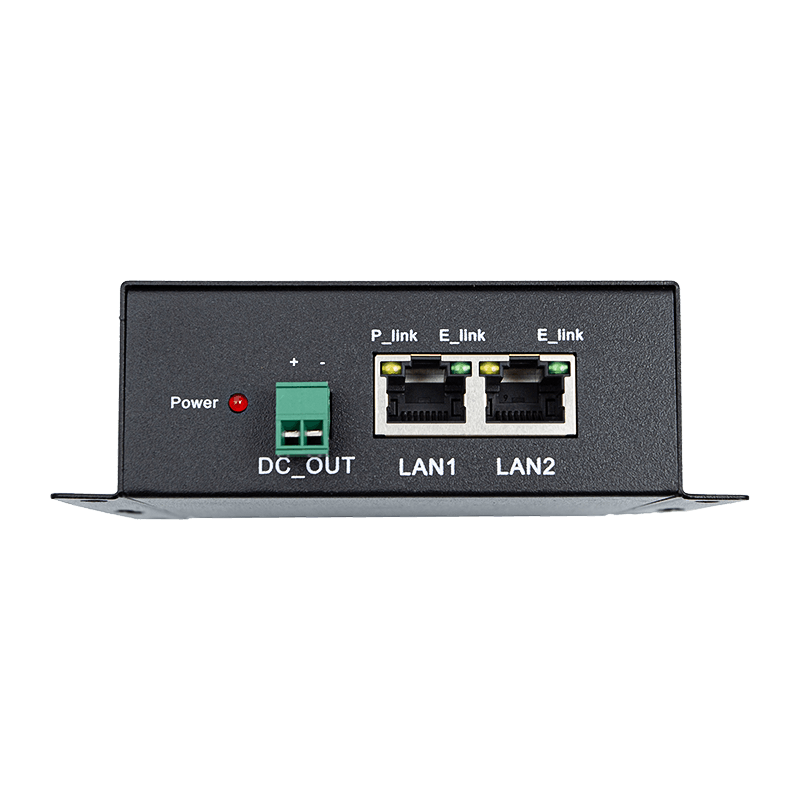

The KS710LD Broadband Powerline Communication Device is equipped with Dual Ethernet Ports, allowing it to connect two network devices simultaneously. This effectively expands single-point access capacity and facilitates flexible networking for various on-site equipment such as cameras, sensors, and controllers.The device draws power directly from the power line while also providing a DC 12V/24W output to supply power to connected network equipment.

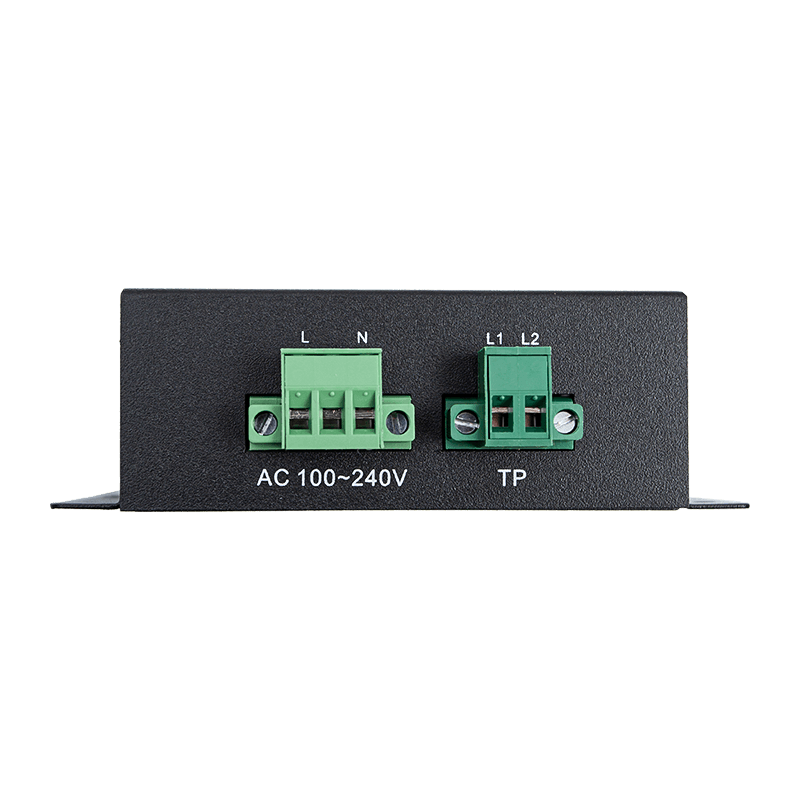

The Broadband Powerline Communication Device KS710LD complies with industrial-grade standards. It supports carrier communication over AC 100V～220V power lines, achieving a maximum transmission distance of 500 meters.The device features automatic networking and route optimization capabilities, allowing for the flexible construction of various network topologies, including bus, star, tree, and hybrid types.An integrated coupling circuit provides high-voltage isolation and surge protection, ensuring stable communication and equipment safety.

The KS710LD Broadband Powerline Communication Device utilizes existing power lines for carrier communication, eliminating the need for additional cabling and greatly simplifying network deployment. It is a reliable, efficient, and easy-to-deploy powerline communication solution, particularly suited for on-site environments requiring centralized access of multiple devices or cascaded deployment. Typical applications include various industrial scenarios such as elevator video surveillance, railway communication monitoring, mine monitoring, security systems, and factory video surveillance.
