Single-Phase Serial Port Powerline Transceiver

Product Introduction

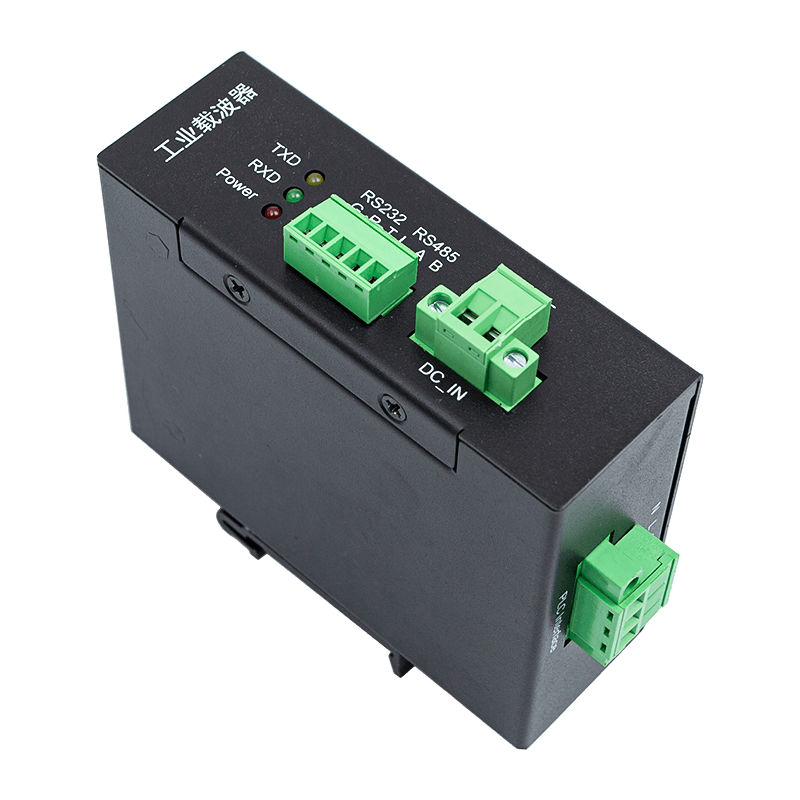

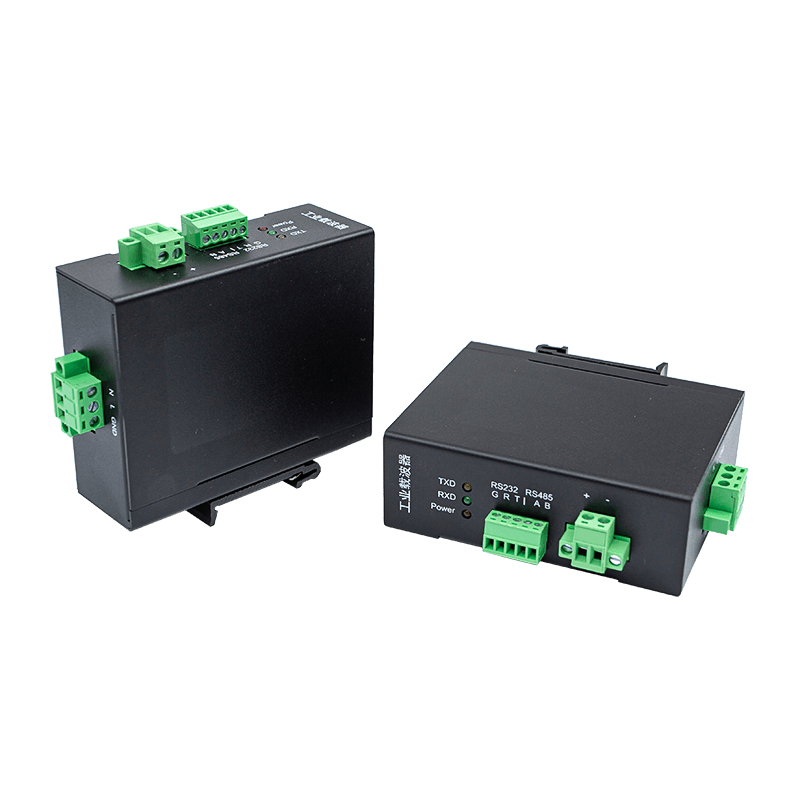

Power line carrier KS500L is a high-performance industrial power line carrier communication equipment based on SOC processor，adopt OFDM modulation technology，subcarriers support BPSK, QPSK, 16QAM modulation，compliance with the EU EN-50561 standard specification，the carrier frequency band is 700KHz ~ 2MHz.Using the existing power line as the information transmission medium for high-speed long-distance data transmission，with high communication rate、two-way transparent transmission、good transmission stability、strong scalability and other characteristics.

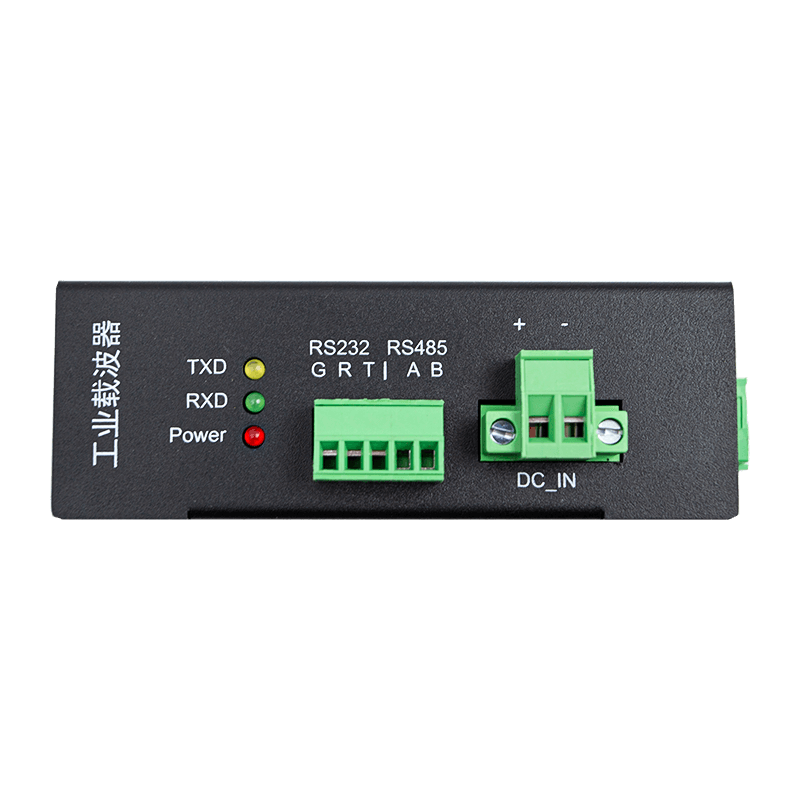

Power line carrier KS500L supports serial port RS485, RS232 and other data through the power line long-distance transmission communication,built-in routing algorithm，automatic network，built-in LDPC error correction codec，AES-128bit cryptographic algorithm，the data is fully transparent，plug and play.Power line point-to-point transmission distance up to 3000 meters，the networking mode supports bus type, star type, tree type, and hybrid network topology structure.

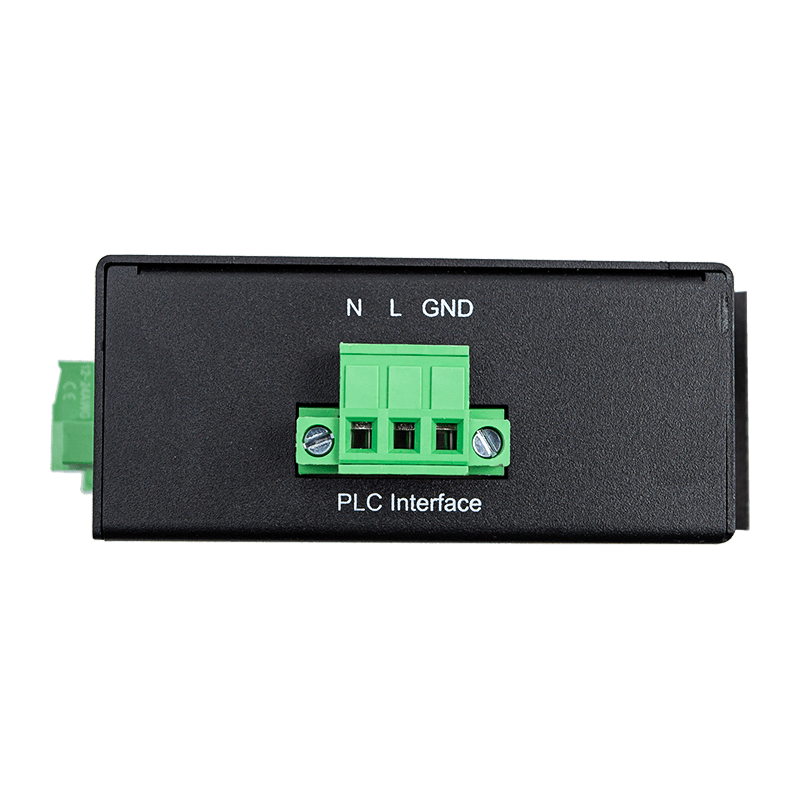

The KS500L power line carrier is an industrial standard，it is suitable for AC85-300V or DC70-430V power line carrier communication，make full use of existing power line network without rewiring,maximize the optimization of network networking cumbersome wiring.

Main areas of application：

Power grid meter reading

Industrial control

Instruments and apparatus

Intelligent transformation

Intelligent street light

Intelligent parking lot
