Explosion-Proof Type Thermal Gas Mass Flowmete

Product Features

● Employing a microelectromechanical system (MEMS) flow sensing chip, the sensor features high precision, high sensitivity, and strong anti-interference capabilities.

● Zero-point stability of the sensor.

● It has high accuracy and good repeatability within its measurement range .

● Standard mechanical interface, easy to install .

● RS485 communication output, standard MODBUS RTU protocol .

● The LCD displays instantaneous and cumulative flow rates, which are clear, intuitive, and easy to read.

● 4~20mA standard current signal output and one PNP output (PNP pulse output or 0-5V/0-10V output can be customized).

● Intrinsically safe explosion-proof certification.

Product Introduction

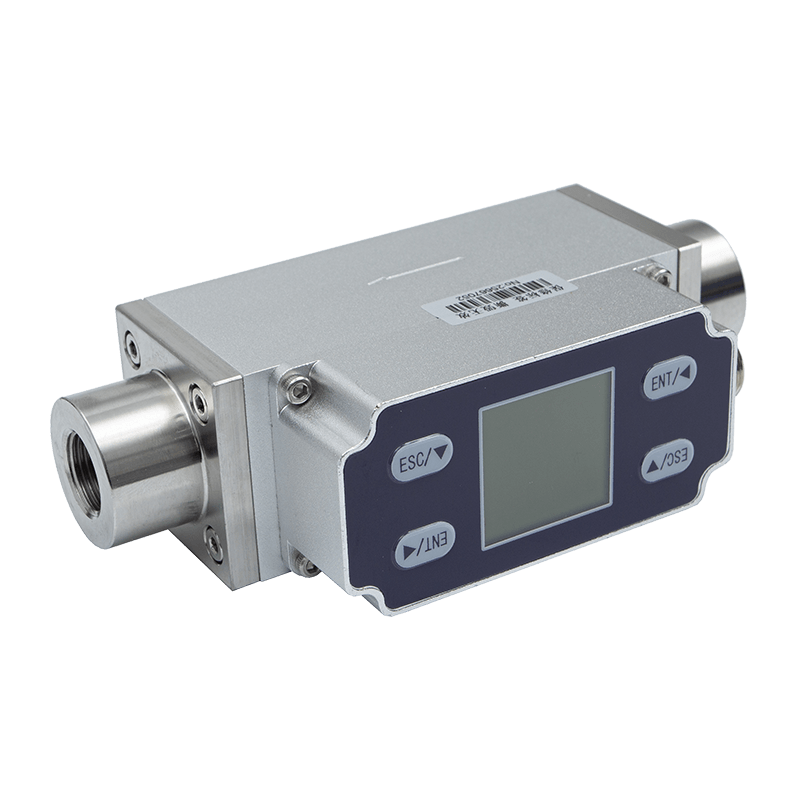

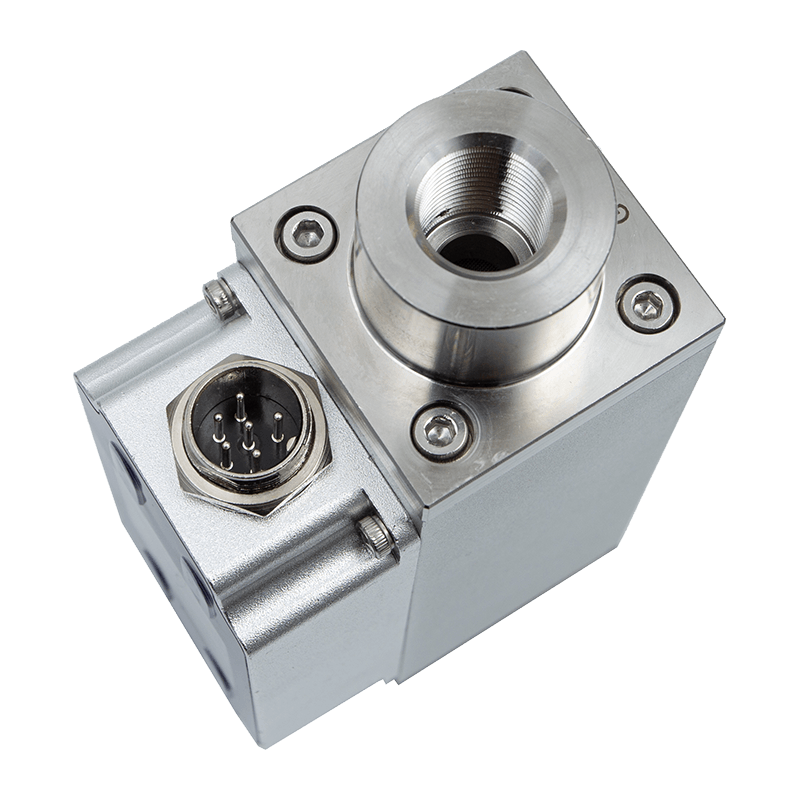

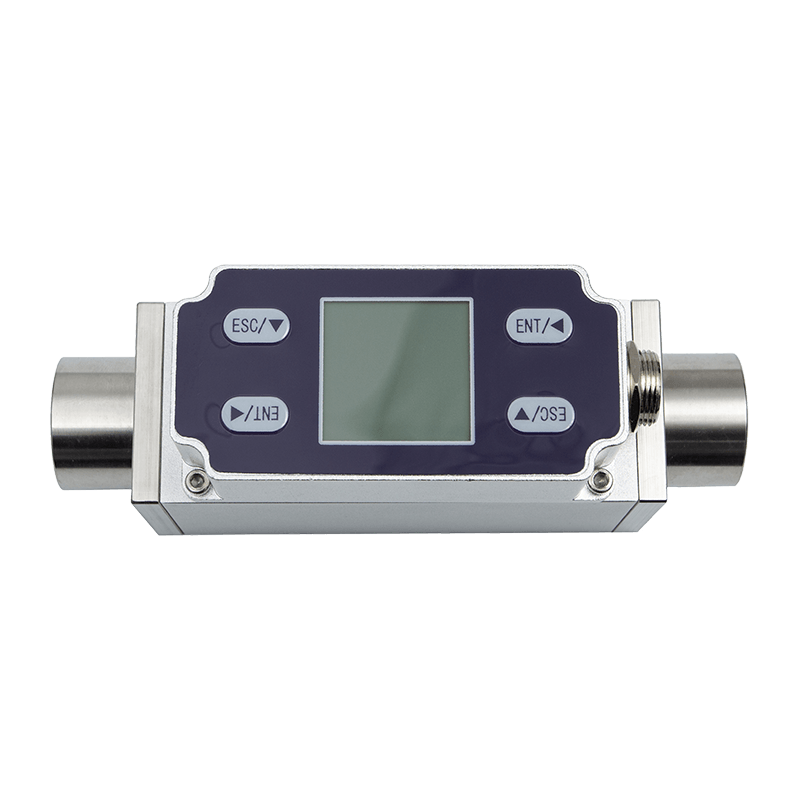

The AI-FK explosion-proof thermal gas mass flow meter is an explosion-proof thermal gas flow sensor designed and developed using an advanced microelectromechanical system (MEMS) flow sensing chip. This explosion-proof flow meter features high accuracy, high sensitivity, and strong anti-interference capabilities, making it suitable for measuring and controlling various small-flow-rate clean gases. Designed according to explosion-proof standards, this flow meter is suitable for various harsh environments, offering low cost, easy installation, and no need for temperature and pressure compensation. It can replace traditional volumetric or differential pressure flow meters.
