Three-Phase Broadband Power Line Carrier (PLC)

Product Introduction

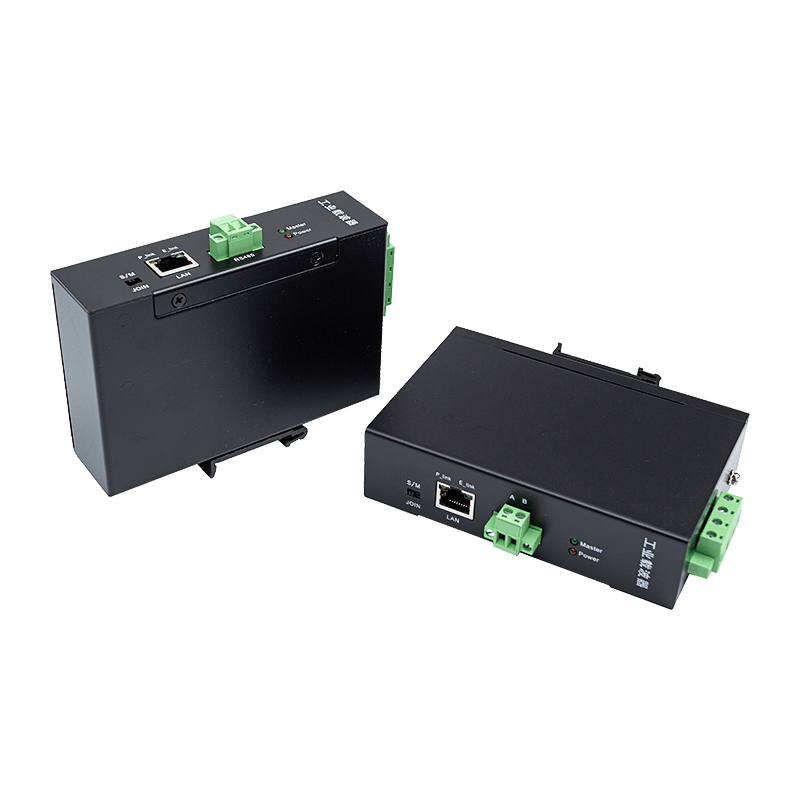

High Definition- Power Line Communication KS910L，is an industrial-grade bandwidth power line carrier communication device based on IEEE P1901, adopting OFDM modulation and demodulation technology and conforming to the European Union EN-50561 standard specification.PLC uses the existing power line or slip contact core as the information transmission medium for high-speed long-distance data transmission, featuring high communication rate, bidirectional transparent transmission, good transmission stability, scalability and strong anti-interference.

HD-PLC KS910L is self-contained routing algorithm，automatic networking，built-in LDPC error correction codec，AES-128 bit encryption algorithm，fully transparent dissemination of data.Hundred megabit bandwidth with 10Mbps/100Mbps communication rate adaptive bandwidth.Long transmission distance, power line point-to-point transmission distance up to 500 metre, coaxial cable transmission distance up to two or three kilometre.Networking mode supports bus, star, tree, and hybrid network topologies, hot-swappable, plug-and-play.

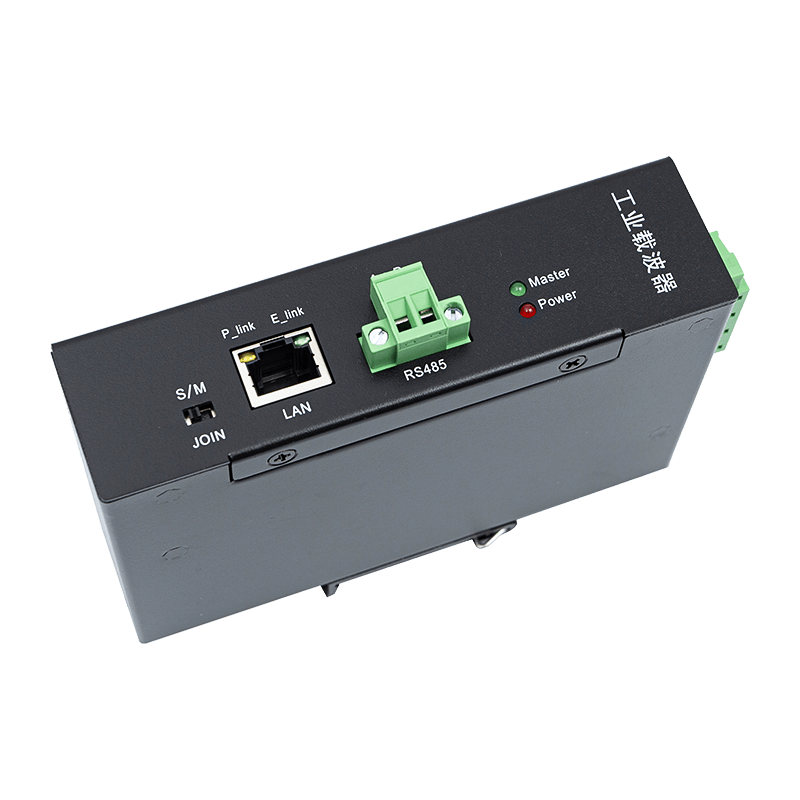

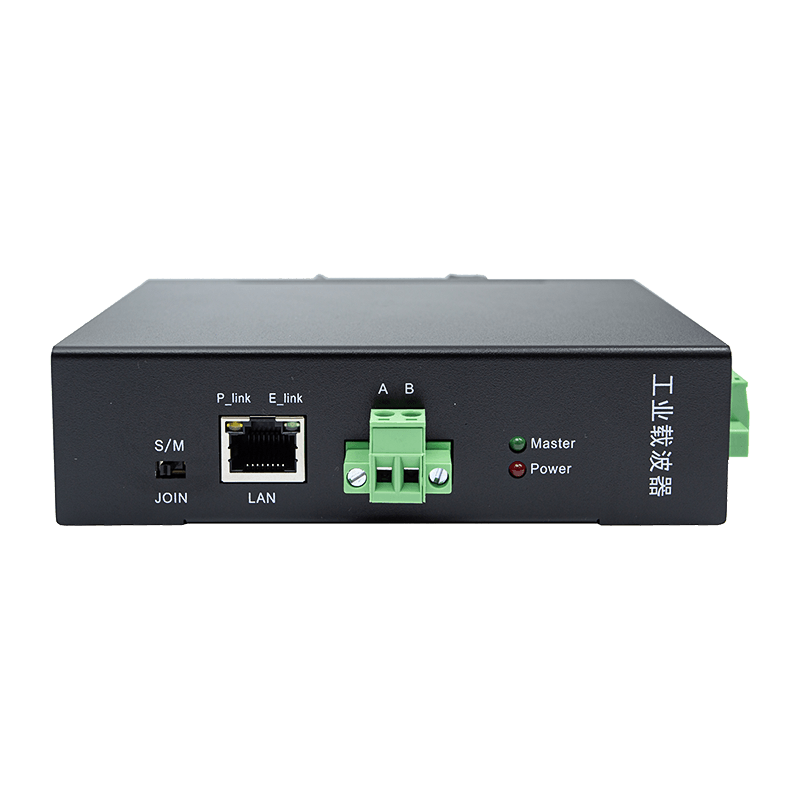

The KS910L is available in several versions for different applications，hardware versions include standard version, high-bandwidth version, long-distance version, and broadcast versions, and software versions include high-performance version, relay version, and specialised versions for slid contact cord.With independent dual-channel data interface, support network port and serial RS485 data at the same time on the power line carrier communication.

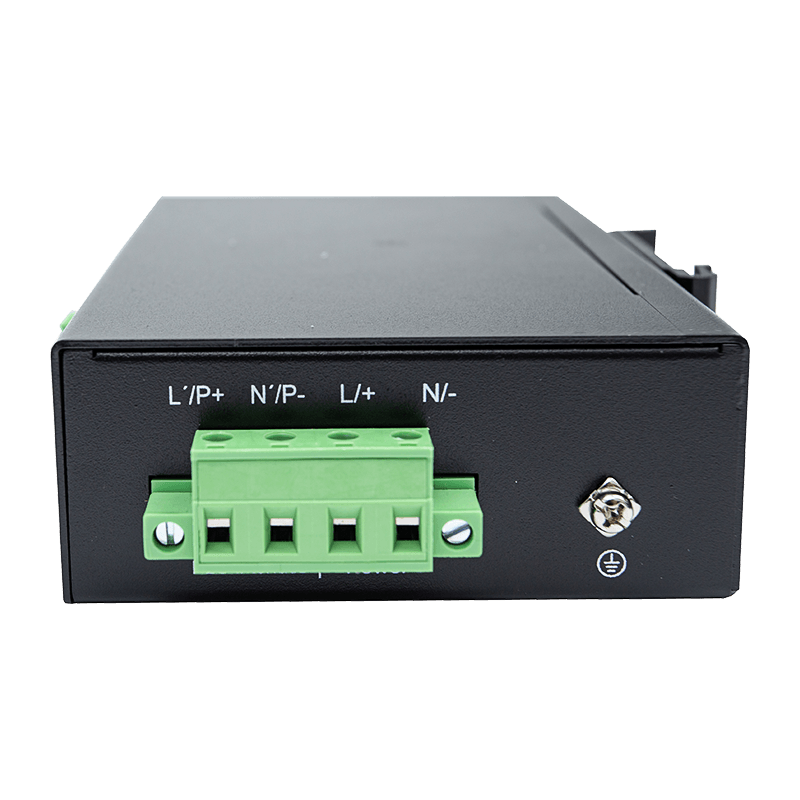

HD-PLC KS910L conforms to industrial grade standards，guide rail mounting method.Supports carrier communication on AC 85-500V or DC 100-700V power lines or slip contact cord，simultaneously picking up power on the power lines，no separate power supply required.Full utilisation of existing power line network，no rewiring required，optimise cumbersome cabling for network networking to the maximum extent possible.The products have been widely used in various industries, including intelligent warehousing, three-dimensional parking garage, logistics sorting system, intelligent overhead crane, inspection robot, new energy power exchange, automation control and PLC control system and so on.
