Product Overview
Temperature monitoring points for high-voltage electrical equipment are typically located in environments with high voltage, high current, and strong magnetic fields. Due to the stringent conditions such as strong electromagnetic noise, high-voltage insulation, and space constraints, real-time temperature monitoring of high-voltage electrical equipment becomes extremely difficult.
Our company's independently developed wireless temperature monitoring system is a real-time temperature measurement system that uses radio waves for signal transmission. This system mounts a sensor on the device being measured, and the sensor is connected to the receiving host via a wireless network. This system fundamentally overcomes the challenge of real-time online monitoring of the operating temperature of high-voltage equipment contacts.

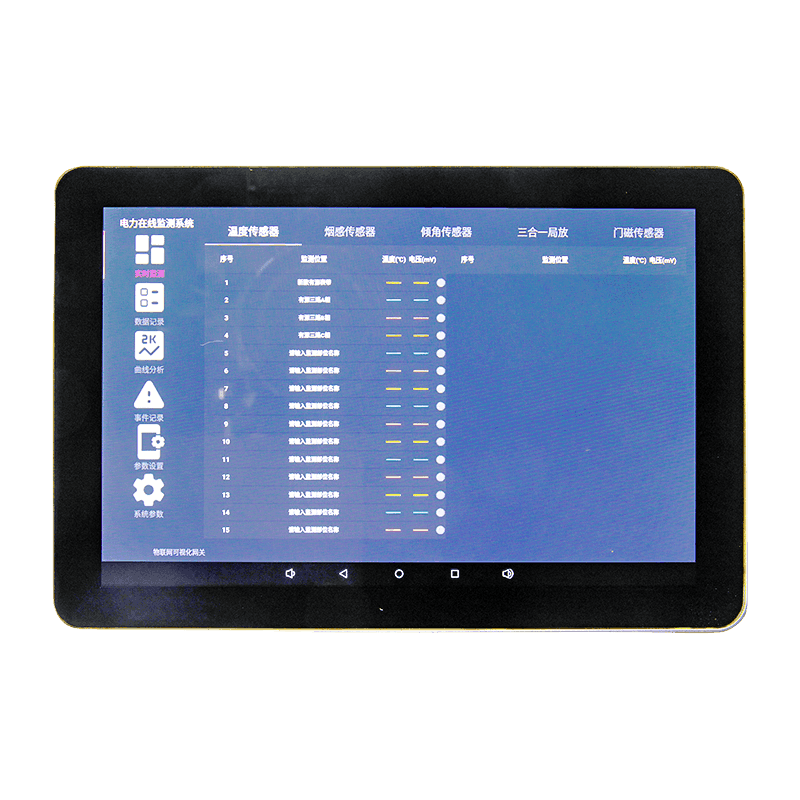

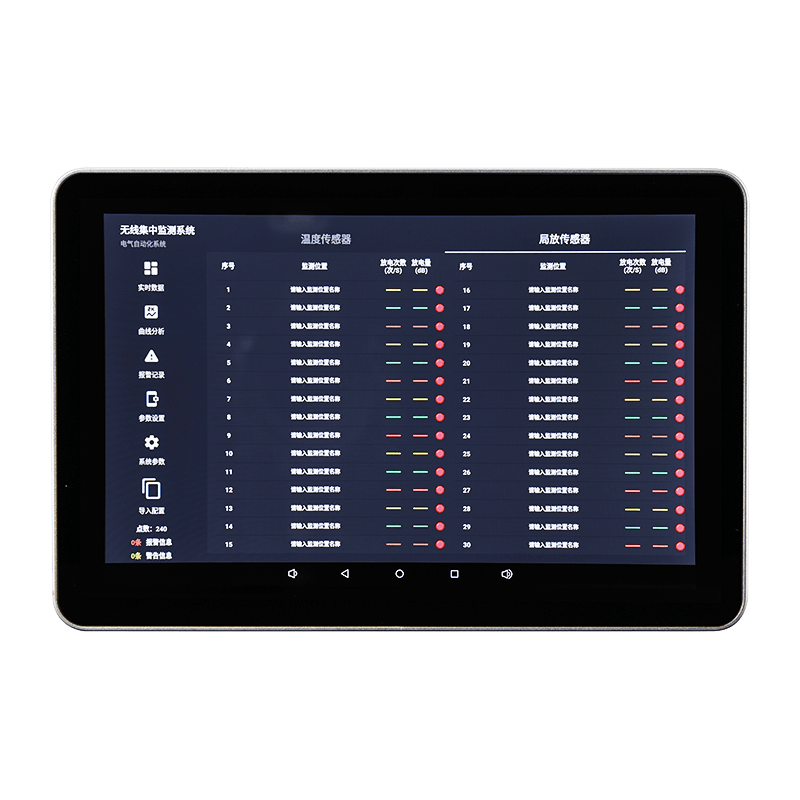

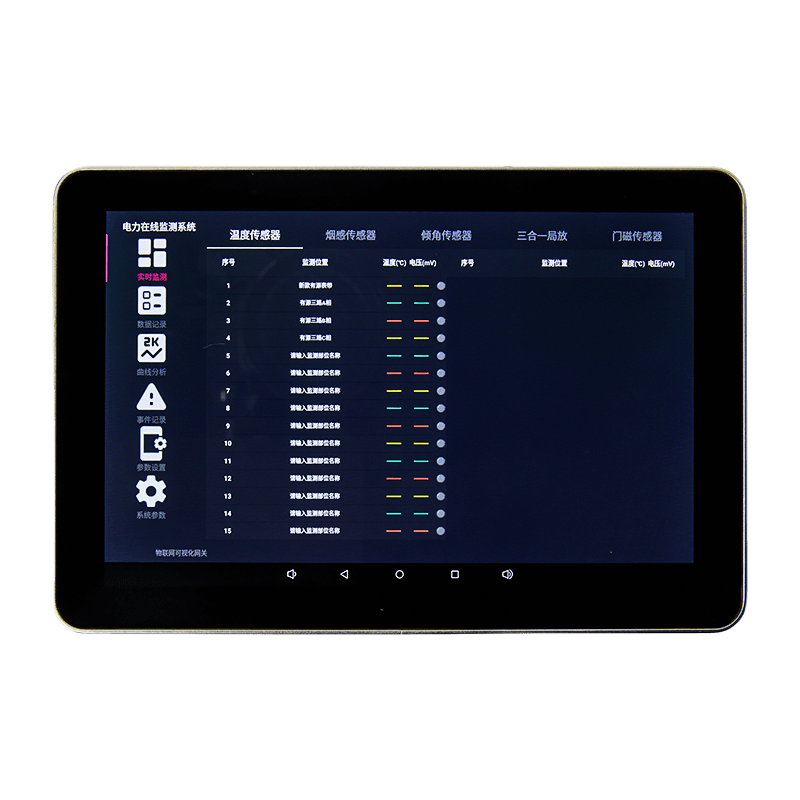

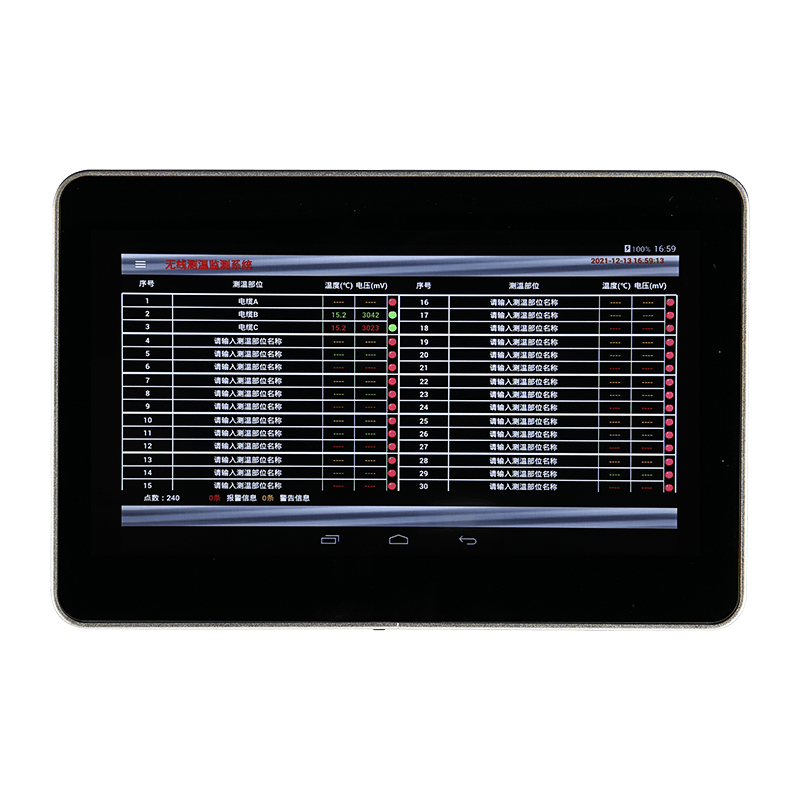

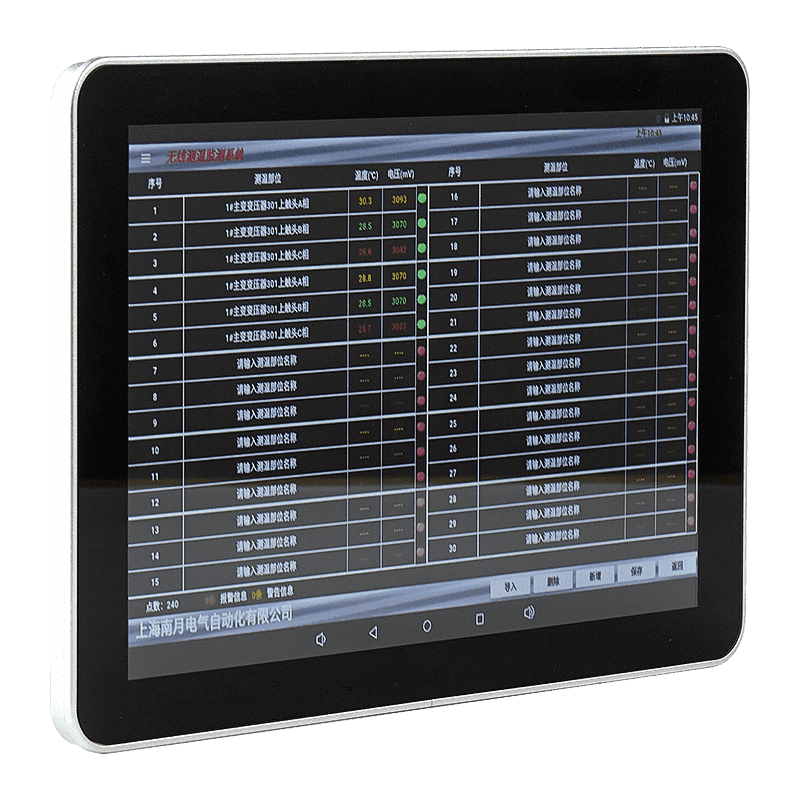

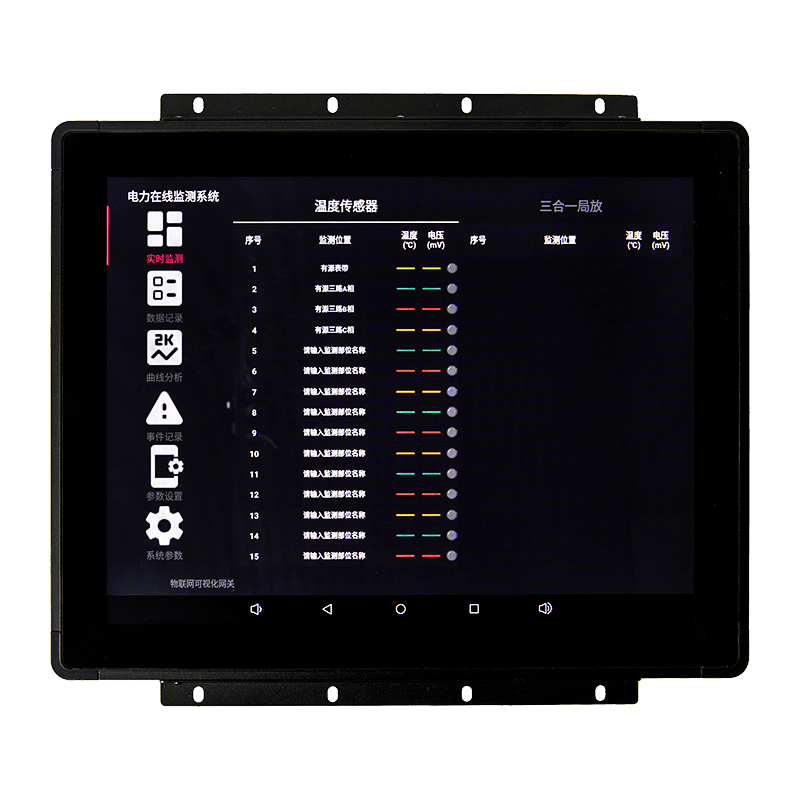

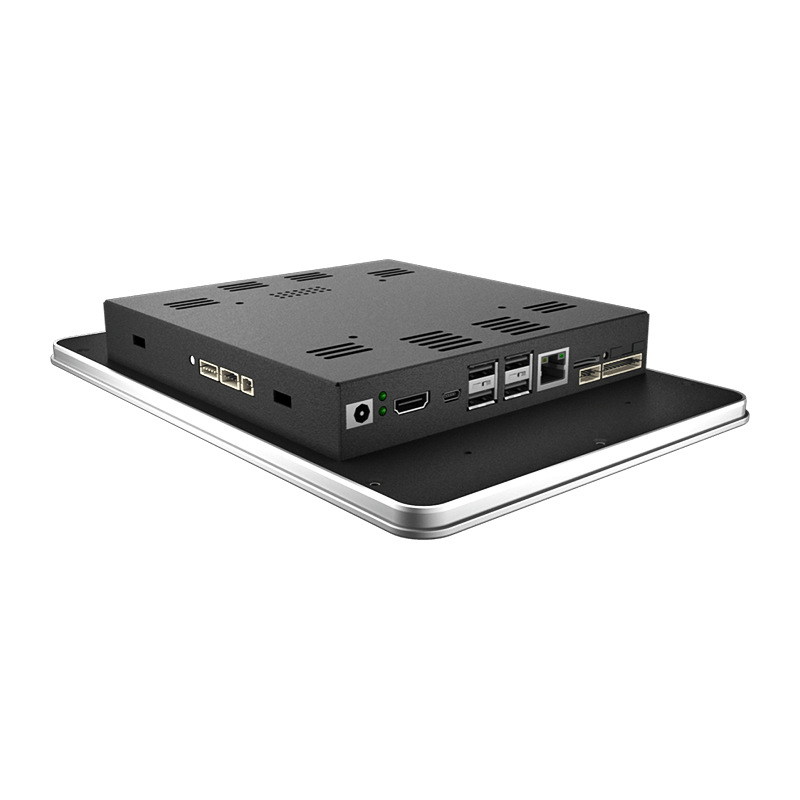

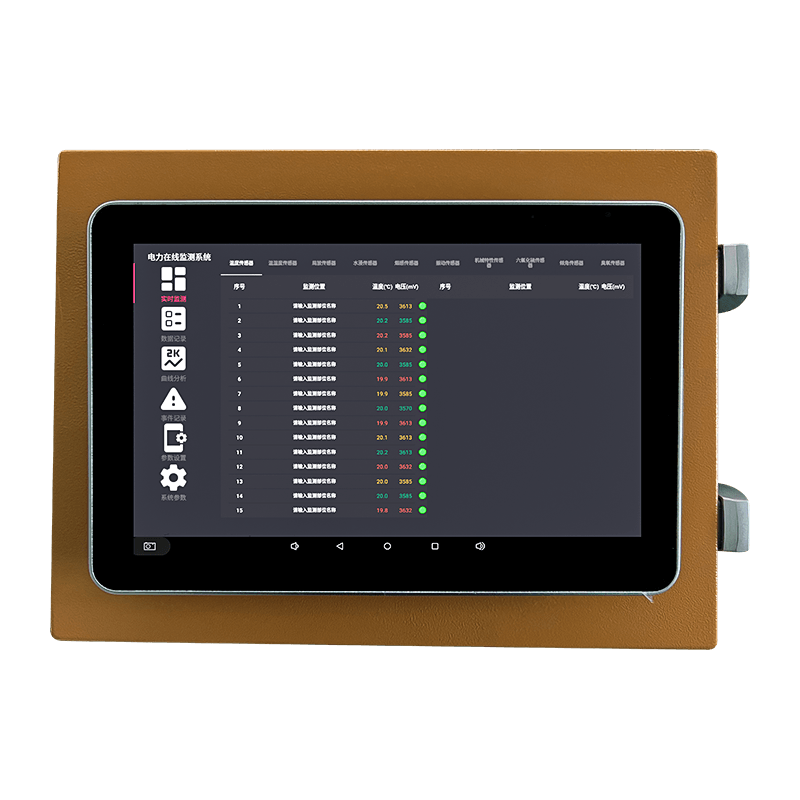

The KL-MT89MP touchscreen wireless temperature measurement host is an industrial-grade 10-inch touchscreen host equipped with a standard communication interface, supporting network operation and capable of receiving data from wireless temperature sensors. Simultaneously, with the help of host computer software, the host can record real-time operating temperature data of high-voltage equipment, enabling proactive maintenance of high-voltage equipment for thermal failures and providing historical data for high-voltage equipment repair.
The wireless temperature monitoring system boasts extremely high reliability and security . The temperature sensor employs ultra-low power wireless communication, transmitting the collected temperature data to the wireless temperature monitoring host via a wireless network. The wireless temperature sensor is directly installed at the temperature monitoring point of each high-voltage electrical device, such as industrial production equipment, high-power motors, high-voltage switches, busbar joints, outdoor disconnectors, transformers, and other electrical contacts prone to high temperatures.
Introduction to Main Functions
|
Main functions |
Function Introduction |
|
|
Basic function |
Receive data |
Receive temperature and sensor operating voltage uploaded by wireless temperature sensor |
|
Display data |
The received data is displayed in color, providing a more intuitive viewing experience. The backlight is controllable and suitable for a variety of applications. |
|
|
Clock display |
A real-time clock is displayed and serves as the time reference for event logging. |
|
|
Parameter settings |
All parameters are flexibly adjustable, easy to operate, and data is not lost even when power is off. |
|
|
Alarm output |

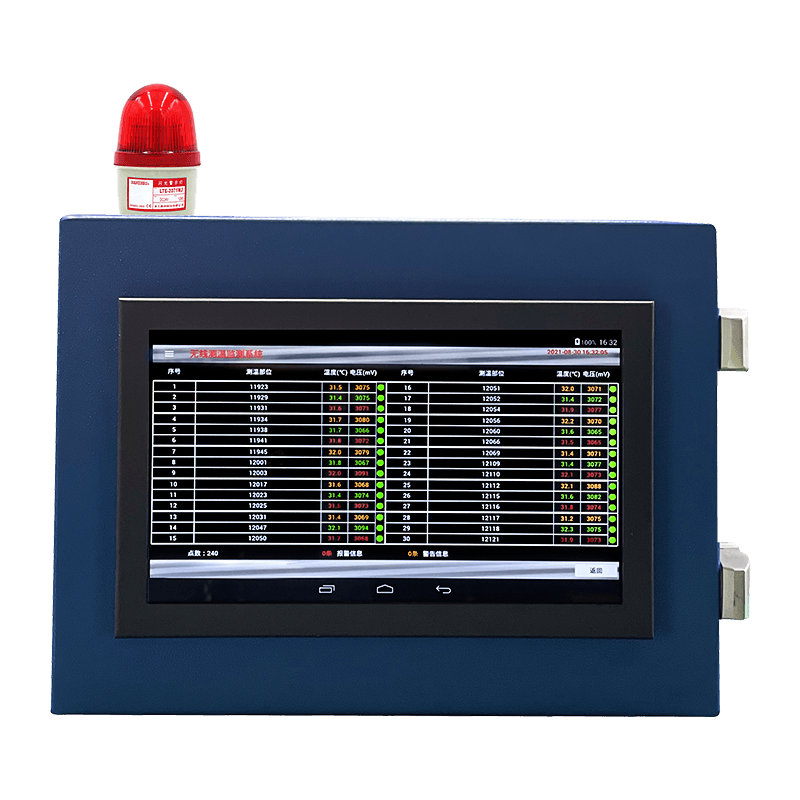

When an alarm event occurs, the relay dry contact outputs a signal and emits a buzzer alarm sound. |
|
|
Temperature alarm record |
Record the temperature at the temperature measurement location where an alarm has occurred. |
|
|
Password Management |
Password management is used; a password is required to set parameters. There are two types of passwords: user password and system password. Entering the system password allows access to more advanced settings. |
|
Technical Specifications
|
Technical parameters |
Technical indicators |
|
|
Wireless parameters |
wireless frequency |
2.4GHz/433MHz/470~510MHz |
|
Managing the number of wireless sensors |
≥240 |
|
|
Communication parameters |
Communication methods |
RS485, Ethernet, and fiber optic communication are available. RS485 communication distance is ≤1200m (without repeaters). |
|
Number of hosts in a network |
≤128 units |
|
|
Communication Protocol |
Modbus Protocol |
|
|
baud rate |
1200, 2400, 4800, and 9600 bps are available. |
|
|
Alarm Default parameter |
Temperature alarm value |
Upper limit: +90℃, lower limit: -20℃ |
|
Temperature alarm value |
Upper limit: +60℃, lower limit: -10℃ |
|
|
alarm voltage value |
2700mV |
|
|
Relay dry contact parameters |
AC220V/5A Passive Normally Open (Optional Function) |
|
|
Operating voltage |
AC220V |
|
|
Overall power consumption |
≤5VA |
|
|
Operating temperature |
-10℃ to +70℃ |
|
|
Operating humidity |
≤90%RH, non-condensing, non-corrosive |
|
|
altitude |
≤2500 meters |
|
|
Insulation resistance |
≥100MΩ (temperature between 10~30℃, relative humidity less than 80%) |
|
|
Installation method |
Wall-mounted installation, recessed installation |
|
